IxChariot



Summary - X:\share.soc.lib.md.us\sha_wicomico_chariot_tests\first_test_bidirectional_traffic_2_endpoints_chanel_2.tst


Console version 7.20 EA
Console build level 6
Console product type IxChariot
Filename X:\share.soc.lib.md.us\sha_wicomico_chariot_tests\first_test_bidirectional_traffic_2_endpoints_chanel_2.tst
Run start time Wednesday, November 28, 2012, 9:44:55 AM
Run end time Wednesday, November 28, 2012, 9:46:55 AM
Elapsed time 00:02:00
How the test ended Ran to completion
Number of pairs 2


Run Options


End type Run for a fixed duration
Duration 00:02:00
Reporting type Real-time
Force acknowledgments after each report No
Automatically poll endpoints Yes
Polling interval (minutes) 1
Stop run upon initialization failure Yes
Receive timeout during initialization (seconds) 300
Connect timeout during test (minutes) 0
Stop test after this many running pairs fail 1
Collect endpoint CPU utilization No
Collect TCP statistics No
Allow pair reinitialization for setup No
Maximum number of setup reinitializations 3
Setup reinitialization wait interval (milliseconds) 10
Allow pair reinitialization at runtime No
Maximum number of runtime reinitializations 3
Runtime reinitialization wait interval (milliseconds) 10
Validate data upon receipt No
Use a new seed for random variables on every run Yes
Enable Ixia hardware timestamps Yes
Clock synchronization 'Endpoint synchronization'
Console Service Quality





Endpoint Service Quality






Number of Overlapped Sends
4









Test Setup (Console to Endpoint 1)





Group/
Pair
Console Knows Endpoint 1
Console Protocol
Console Service Quality
Pair Comment




All Pairs












Pair 2
10.10.10.1
TCP
n/a
sha to wico




Pair 3
10.10.10.4
TCP
n/a
wico to sha









Test Setup (Endpoint 1 to Endpoint 2)





Group/
Pair
Endpoint 1 Knows Endpoint 2 (Setup)
Endpoint 2 Setup Protocol
UDP compliant with RFC768




All Pairs










Pair 2
10.10.10.4
TCP
n/a




Pair 3
10.10.10.1
TCP
n/a









Test Execution (Endpoint 1 to Endpoint 2)





Group/
Pair
Endpoint 1
Endpoint 2
Network Protocol
Endpoint 1 Service Quality
Endpoint 2 Service Quality
Script/Stream Name




All Pairs
















Pair 2
10.10.10.1
10.10.10.4
TCP




High_Performance_Throughput.scr




Pair 3
10.10.10.4
10.10.10.1
TCP




High_Performance_Throughput.scr

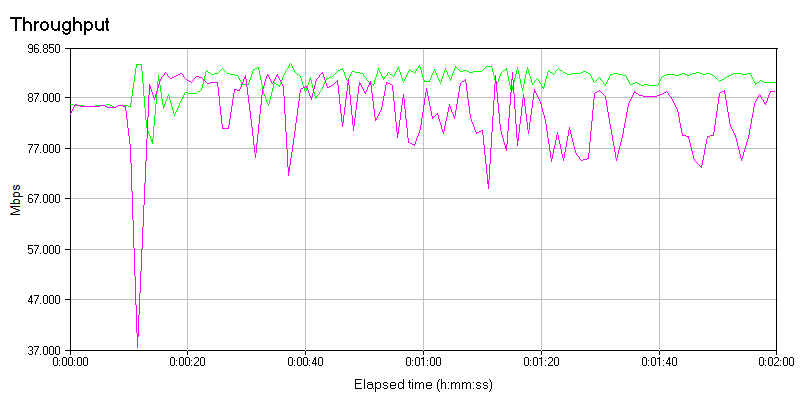

Throughput





Group/
Pair
Average
(Mbps)
Minimum
(Mbps)
Maximum
(Mbps)
Throughput 95% Confidence Interval
Measured Time (secs)
Relative Precision




All Pairs
173.529
37.523
93.787










Pair 2
90.155
77.897
93.787
0.485
119.794
0.538




Pair 3
83.511
37.523
92.060
1.907
119.744
2.284




Totals:
173.529
37.523
93.787

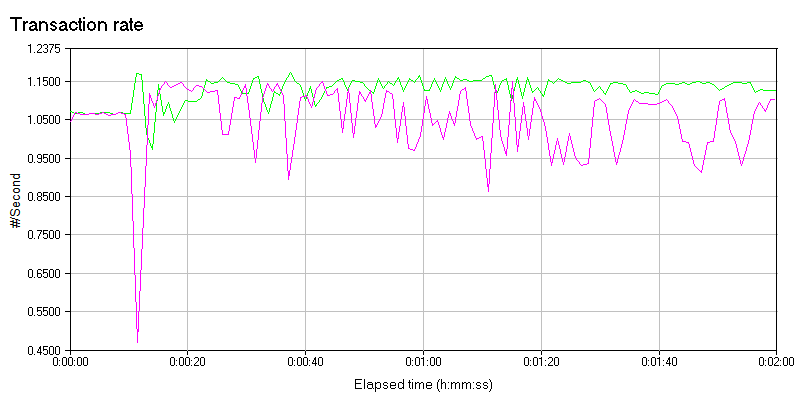

Transaction Rate





Group/
Pair
Transaction Rate Average
Transaction Rate Minimum
Transaction Rate Maximum
Transaction Rate 95% Confidence Interval
Measured Time (secs)
Relative Precision




All Pairs
2.171
0.469
1.172










Pair 2
1.127
0.974
1.172
0.006
119.794
0.538




Pair 3
1.044
0.469
1.151
0.024
119.744
2.284




Totals:
2.171
0.469
1.172

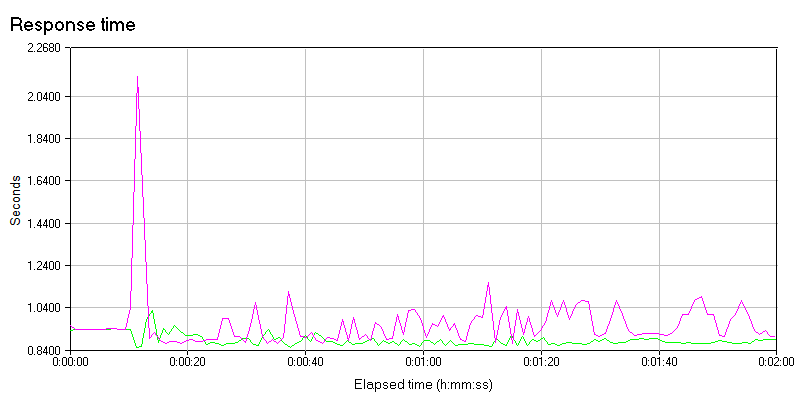

Response Time





Group/
Pair
Response Time Average
Response Time Minimum
Response Time Maximum
Response Time 95% Confidence Interval
Measured Time (secs)
Relative Precision




All Pairs
0.923
0.853
2.132










Pair 2
0.887
0.853
1.027
0.005
119.794
0.538




Pair 3
0.958
0.869
2.132
0.022
119.744
2.284




Totals:
0.923
0.853
2.132


















Endpoint Configuration





Group/
Pair
E1 Operating System
E1 Version
E1 Build Level
E1 Product Type
E1 use encrypted flows
E1 actual address
E2 Operating System
E2 Version
E2 Build Level
E2 Product Type
E2 use encrypted flows
E2 actual address




All Pairs




























Pair 2
Windows 7 x64 (64-bit endpoint)
7.20 EA
35
Retail
No


Windows Vista (32-bit)
7.20 EA
35
Retail
No






Pair 3
Windows Vista (32-bit)
7.20 EA
35
Retail
No


Windows 7 x64 (64-bit endpoint)
7.20 EA
35
Retail
No











Raw Data Totals





Group/
Pair
Number of Timing Records
Transaction Count
Bytes Sent by E1
Bytes Received by E1
Measured Time (secs)
Relative Precision




All Pairs
260
260
2,600,000,000
260








Pair 2
135
135
1,350,000,000
135
119.794
0.538




Pair 3
125
125
1,250,000,000
125
119.744
2.284




Totals:
260
260
2,600,000,000
260
