IxChariot



Summary - C:\Users\onita\Documents\tech\salisbury_sha_wicomico_link\test\bidirectional_traffic_2_endpoints_gigabit_port.tst


Console version 7.20 EA
Console build level 6
Console product type IxChariot
Filename C:\Users\onita\Documents\tech\salisbury_sha_wicomico_link\test\bidirectional_traffic_2_endpoints_gigabit_port.tst
Run start time Tuesday, December 11, 2012, 8:16:28 AM
Run end time Tuesday, December 11, 2012, 8:18:28 AM
Elapsed time 00:02:00
How the test ended Ran to completion
Number of pairs 2


Run Options


End type Run for a fixed duration
Duration 00:02:00
Reporting type Real-time
Force acknowledgments after each report No
Automatically poll endpoints Yes
Polling interval (minutes) 1
Stop run upon initialization failure Yes
Receive timeout during initialization (seconds) 300
Connect timeout during test (minutes) 0
Stop test after this many running pairs fail 1
Collect endpoint CPU utilization No
Collect TCP statistics No
Allow pair reinitialization for setup No
Maximum number of setup reinitializations 3
Setup reinitialization wait interval (milliseconds) 10
Allow pair reinitialization at runtime No
Maximum number of runtime reinitializations 3
Runtime reinitialization wait interval (milliseconds) 10
Validate data upon receipt No
Use a new seed for random variables on every run Yes
Enable Ixia hardware timestamps Yes
Clock synchronization 'Endpoint synchronization'
Console Service Quality





Endpoint Service Quality






Number of Overlapped Sends
4









Test Setup (Console to Endpoint 1)





Group/
Pair
Console Knows Endpoint 1
Console Protocol
Console Service Quality
Pair Comment




All Pairs












Pair 1
10.10.10.1
TCP
n/a
sha to wico direction




Pair 2
10.10.10.2
TCP
n/a
wico to sha direction









Test Setup (Endpoint 1 to Endpoint 2)





Group/
Pair
Endpoint 1 Knows Endpoint 2 (Setup)
Endpoint 2 Setup Protocol
UDP compliant with RFC768




All Pairs










Pair 1
10.10.10.2
TCP
n/a




Pair 2
10.10.10.1
TCP
n/a









Test Execution (Endpoint 1 to Endpoint 2)





Group/
Pair
Endpoint 1
Endpoint 2
Network Protocol
Endpoint 1 Service Quality
Endpoint 2 Service Quality
Script/Stream Name




All Pairs
















Pair 1
10.10.10.1
10.10.10.2
TCP




High_Performance_Throughput.scr




Pair 2
10.10.10.2
10.10.10.1
TCP




High_Performance_Throughput.scr

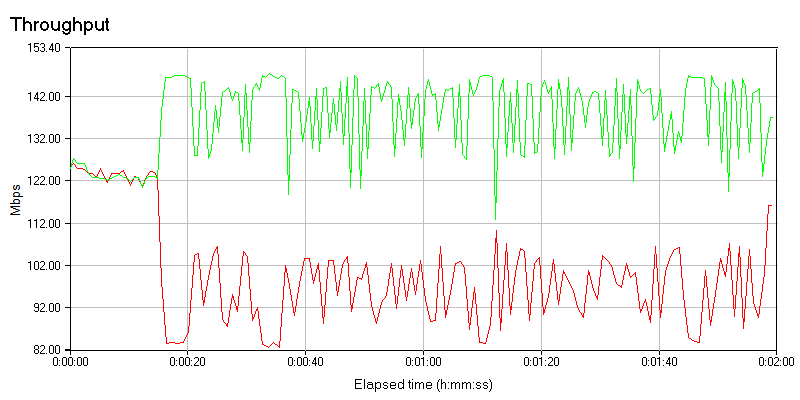

Throughput





Group/
Pair
Average
(Mbps)
Minimum
(Mbps)
Maximum
(Mbps)
Throughput 95% Confidence Interval
Measured Time (secs)
Relative Precision




All Pairs
235.826
82.645
147.330










Pair 1
99.316
82.645
126.183
1.857
119.215
1.870




Pair 2
136.820
112.835
147.330
1.299
119.281
0.950




Totals:
235.826
82.645
147.330

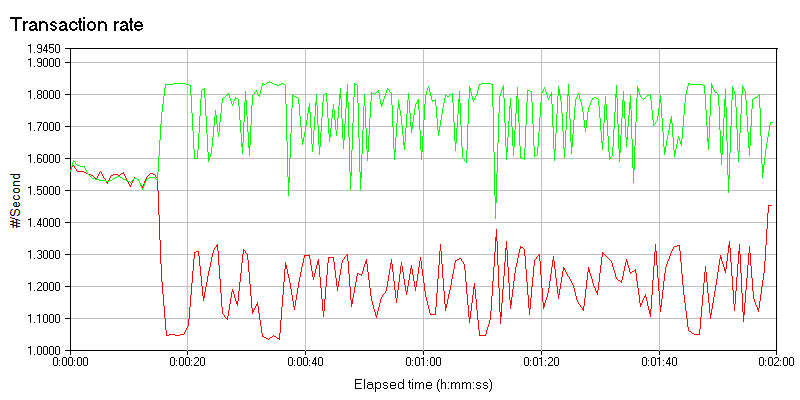

Transaction Rate





Group/
Pair
Transaction Rate Average
Transaction Rate Minimum
Transaction Rate Maximum
Transaction Rate 95% Confidence Interval
Measured Time (secs)
Relative Precision




All Pairs
2.952
1.033
1.842










Pair 1
1.241
1.033
1.577
0.023
119.215
1.870




Pair 2
1.710
1.410
1.842
0.016
119.281
0.950




Totals:
2.952
1.033
1.842

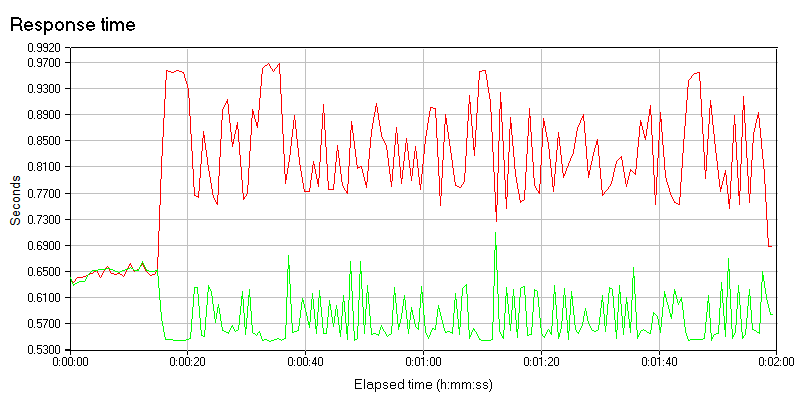

Response Time





Group/
Pair
Response Time Average
Response Time Minimum
Response Time Maximum
Response Time 95% Confidence Interval
Measured Time (secs)
Relative Precision




All Pairs
0.695
0.543
0.968










Pair 1
0.806
0.634
0.968
0.015
119.215
1.870




Pair 2
0.585
0.543
0.709
0.006
119.281
0.950




Totals:
0.695
0.543
0.968


















Endpoint Configuration





Group/
Pair
E1 Operating System
E1 Version
E1 Build Level
E1 Product Type
E1 use encrypted flows
E1 actual address
E2 Operating System
E2 Version
E2 Build Level
E2 Product Type
E2 use encrypted flows
E2 actual address




All Pairs




























Pair 1
Windows 7 x64 (64-bit endpoint)
7.20 EA
35
Retail
No


Windows XP (32-bit)
7.20 EA
35
Retail
No






Pair 2
Windows XP (32-bit)
7.20 EA
35
Retail
No


Windows 7 x64 (64-bit endpoint)
7.20 EA
35
Retail
No











Raw Data Totals





Group/
Pair
Number of Timing Records
Transaction Count
Bytes Sent by E1
Bytes Received by E1
Measured Time (secs)
Relative Precision




All Pairs
352
352
3,520,000,000
352








Pair 1
148
148
1,480,000,000
148
119.215
1.870




Pair 2
204
204
2,040,000,000
204
119.281
0.950




Totals:
352
352
3,520,000,000
352
